Smart Room Number Panel – LED Illuminated, with Do Not Disturb (DND) & Cleaning Indicators

🛎️ Smart Room Number Panel – LED Illuminated, Customizable, with DND & Cleaning Indicators

Looking for a modern, stylish, and functional solution for your hotel, apartment building, or corporate accommodation? Our Smart Room Number Panel, with its LED lighting, not only attracts attention but also elevates the guest experience to the next level.

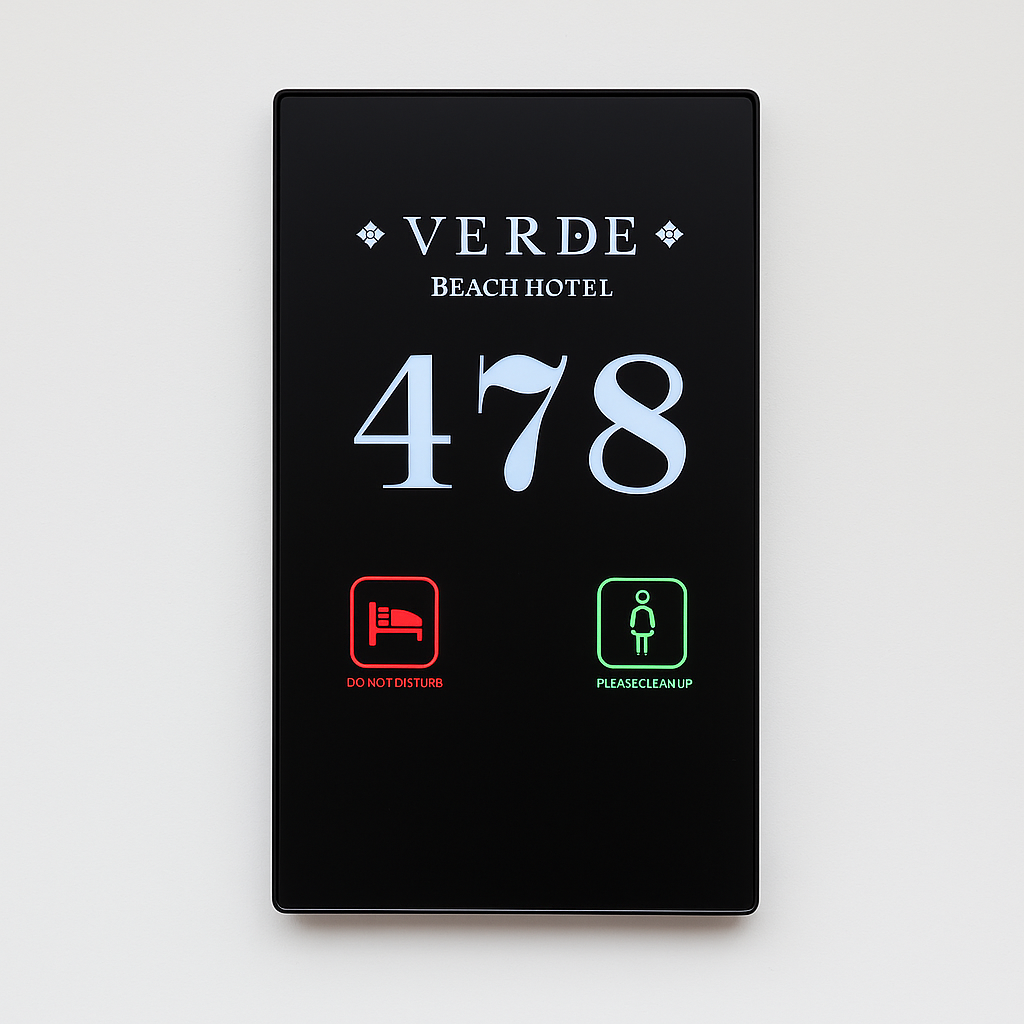

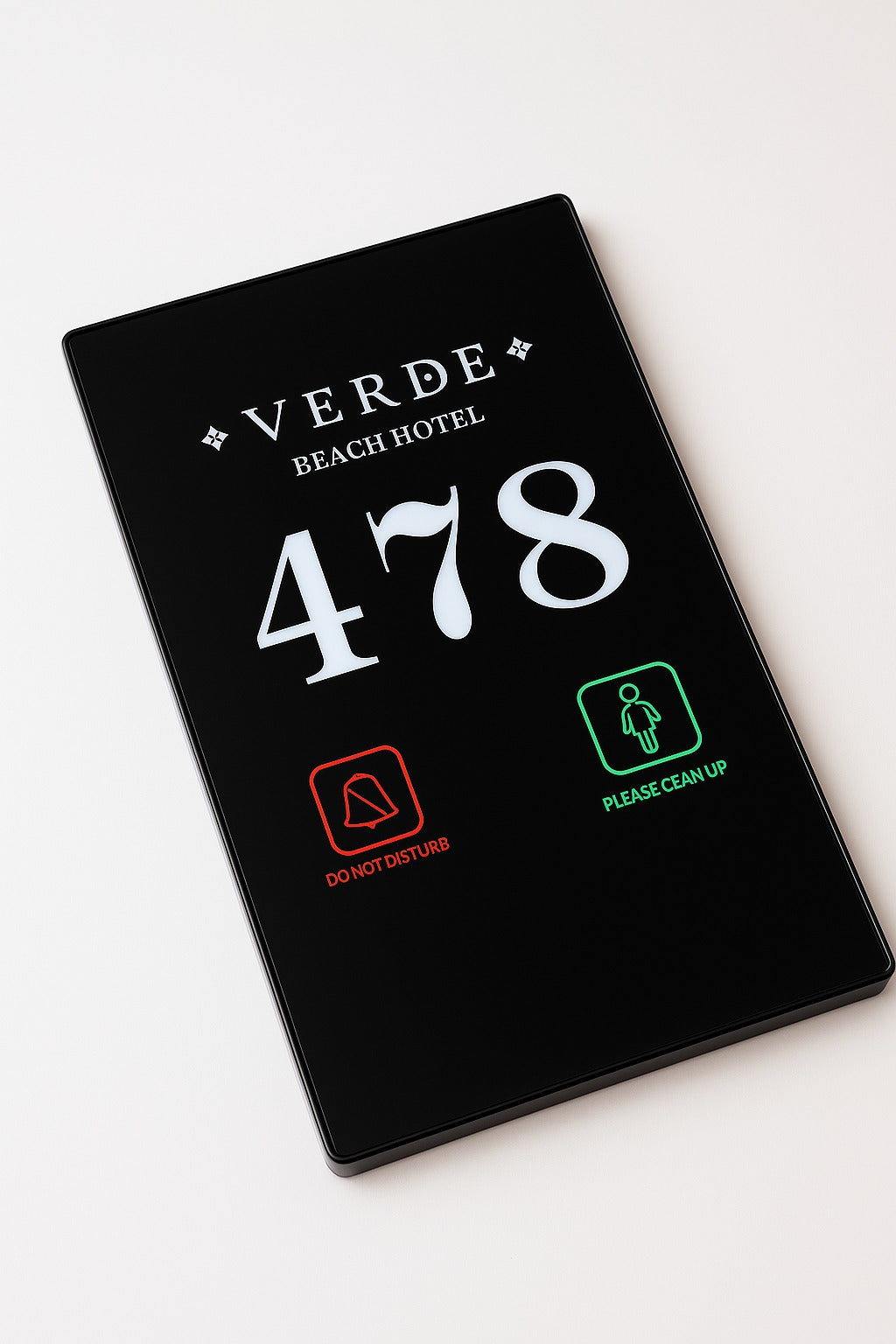

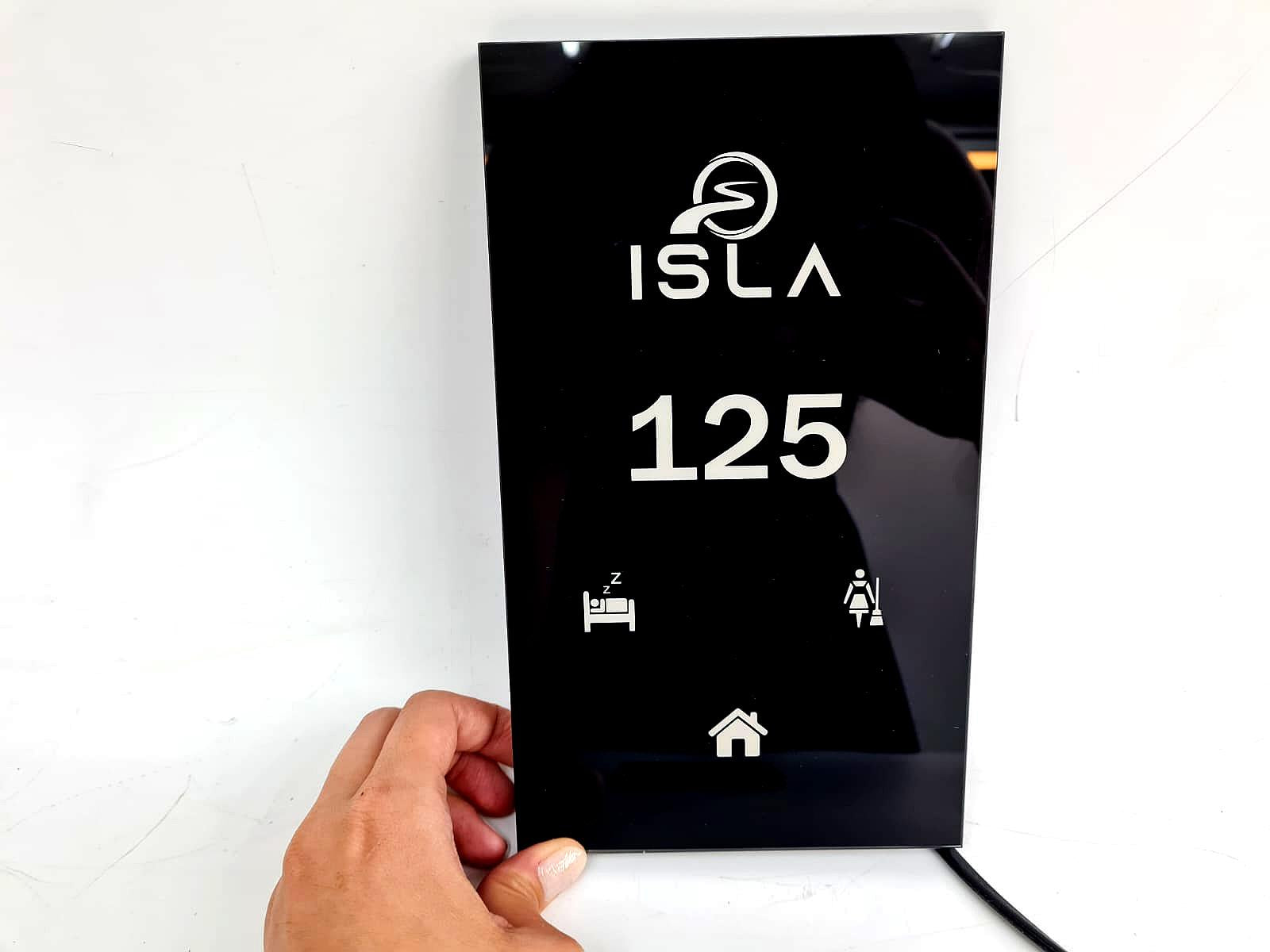

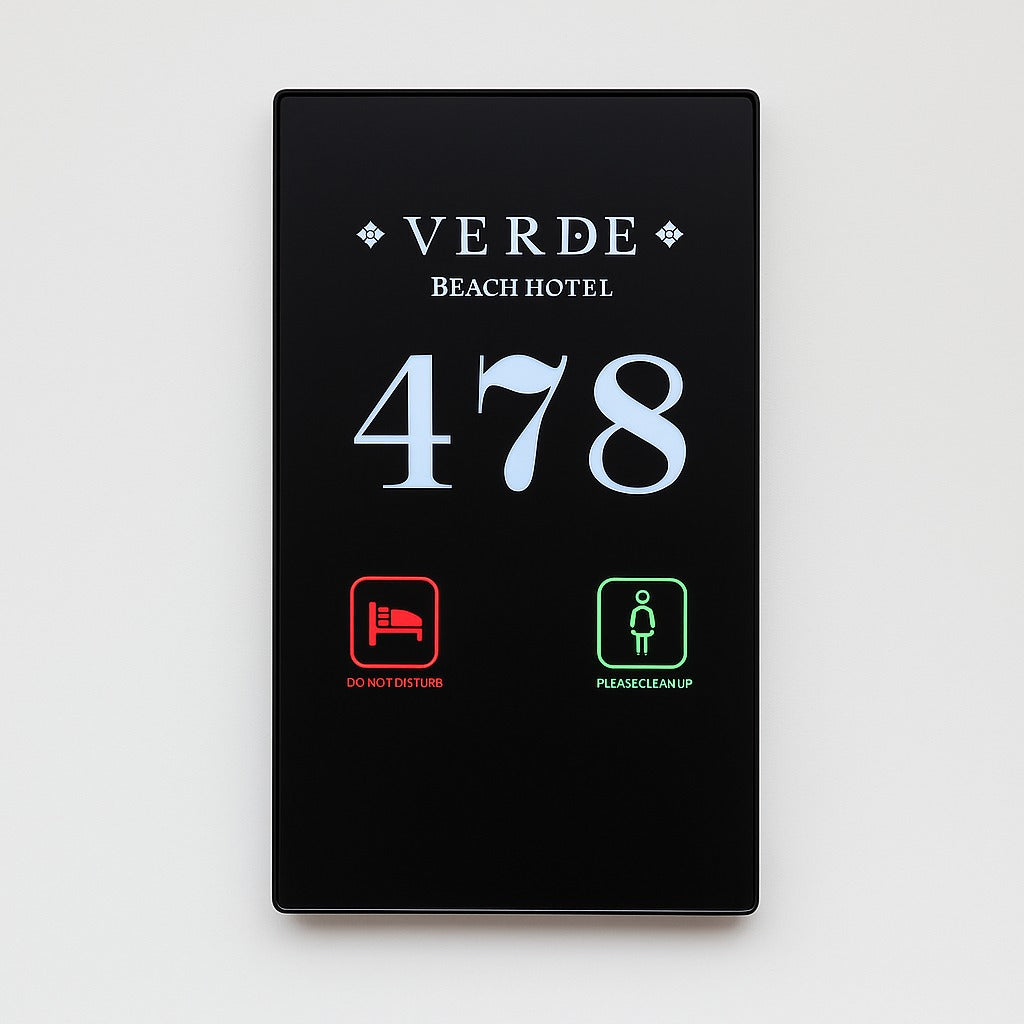

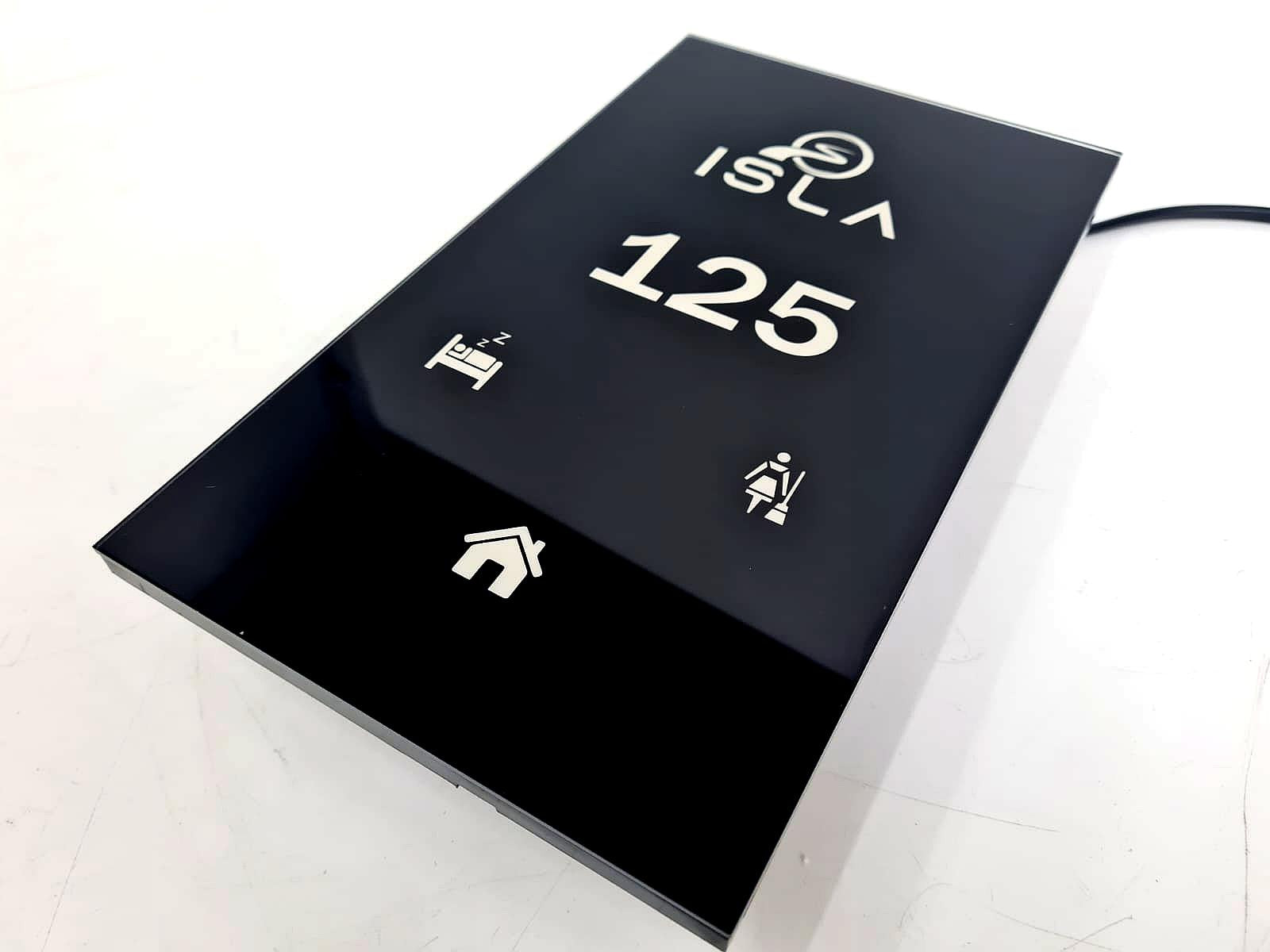

This panel can be equipped with warning indicators such as "Do Not Disturb (DND)", "Cleaning Request", "Bell" and "Availability" and is fully customizable.

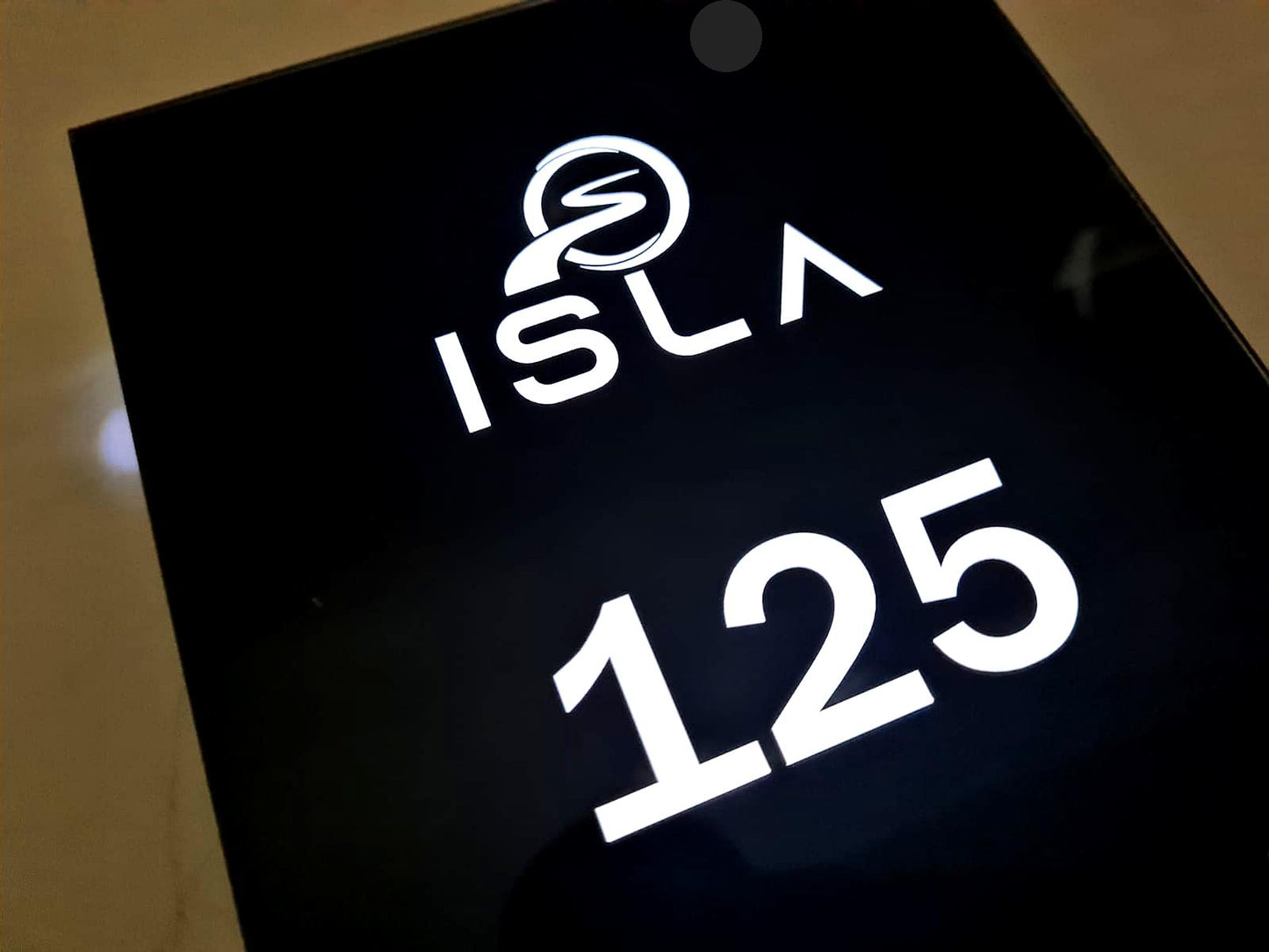

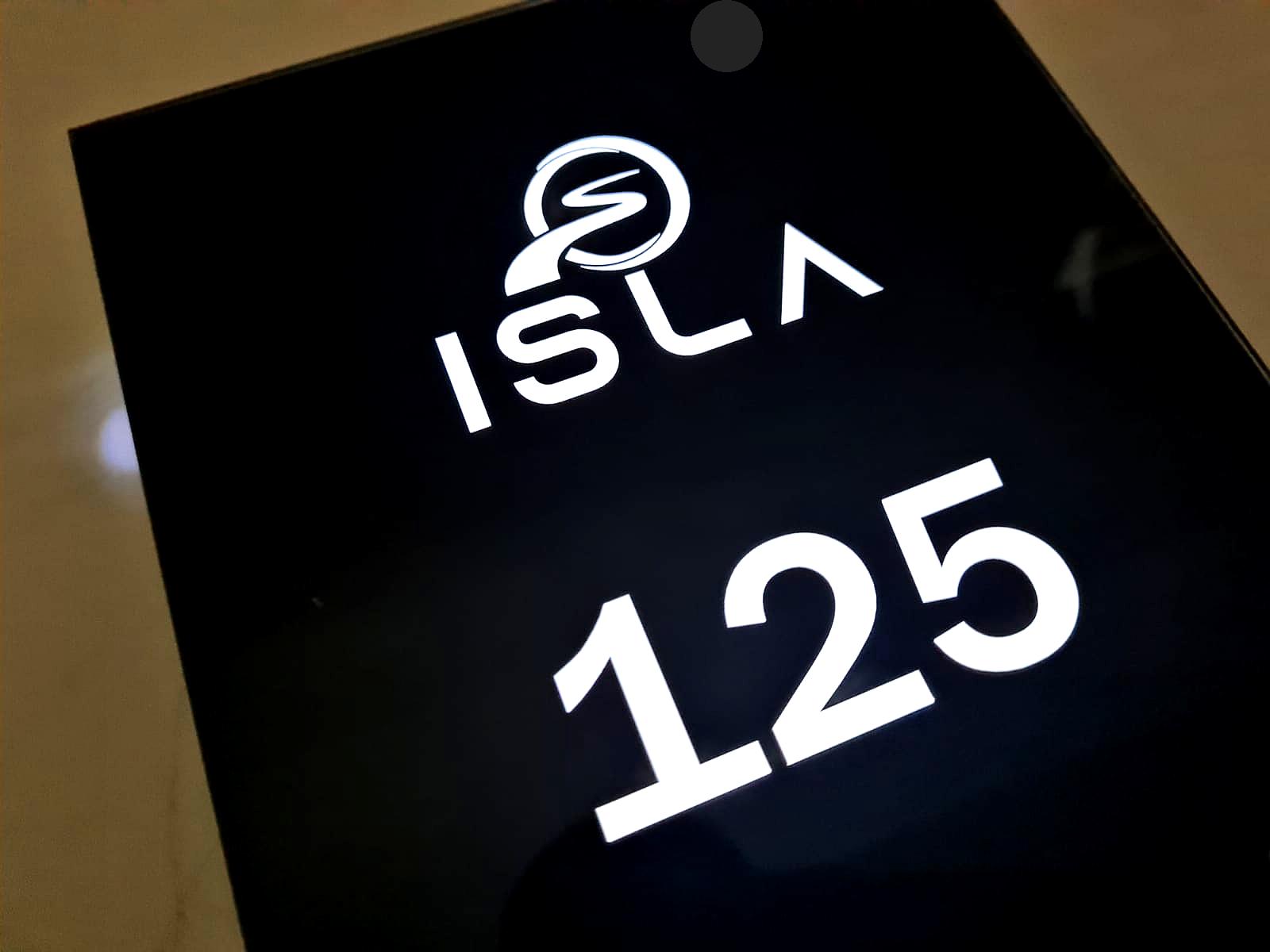

Material: The body is made of high-quality zinc alloy, and the front surface consists of a glass panel that provides a stylish and modern look.

Product dimensions: 13 x 23 cm . Thanks to its compact design, it offers an aesthetic and space-saving solution for hotel room doors.

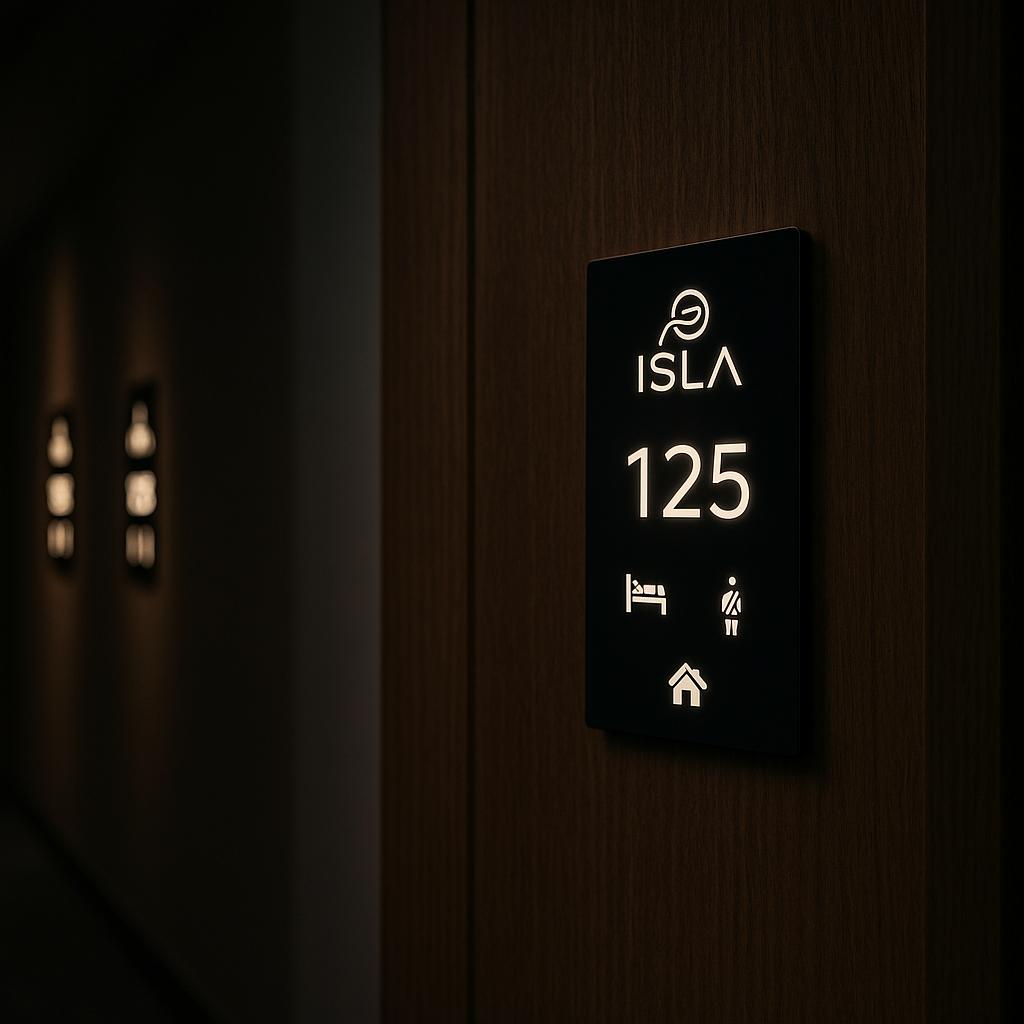

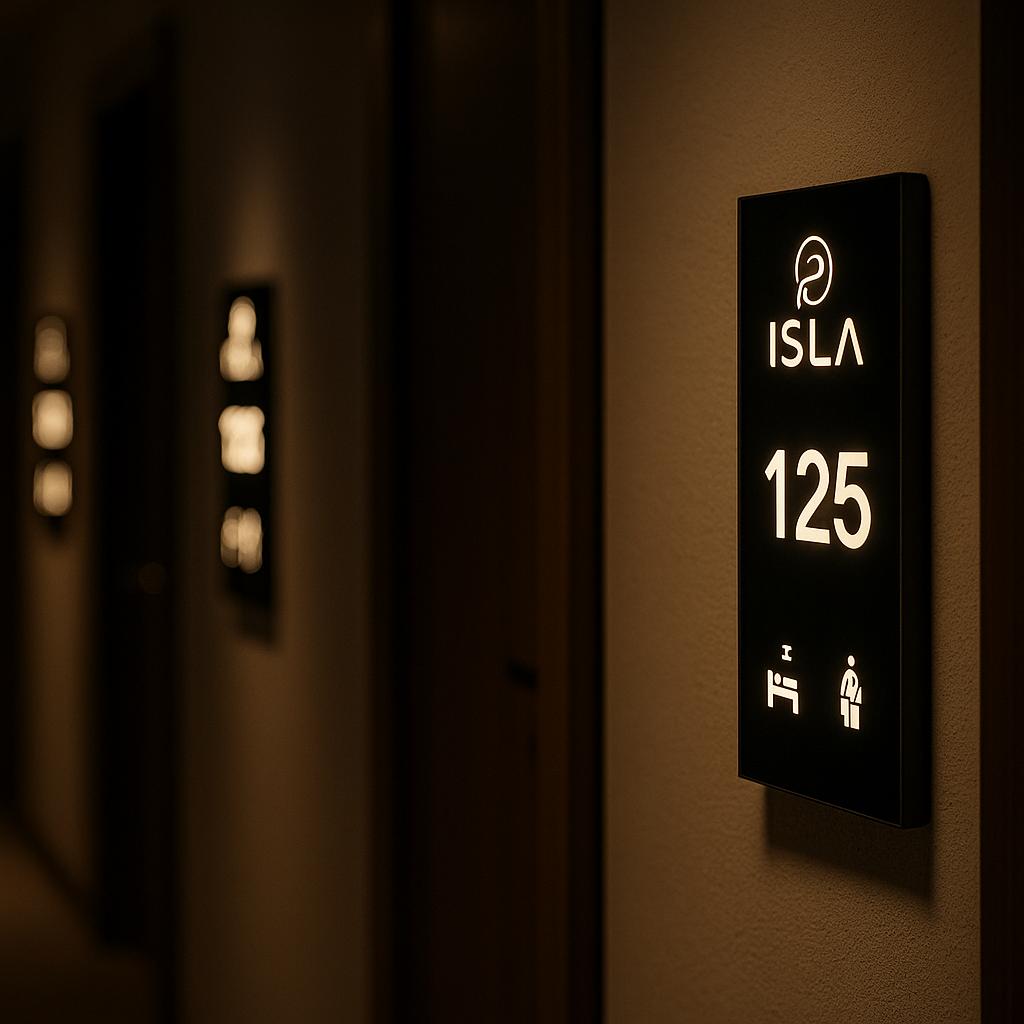

Application Areas: Hotels, residences, student dormitories, and smart building systems.

🔧 Technical Specifications and Details

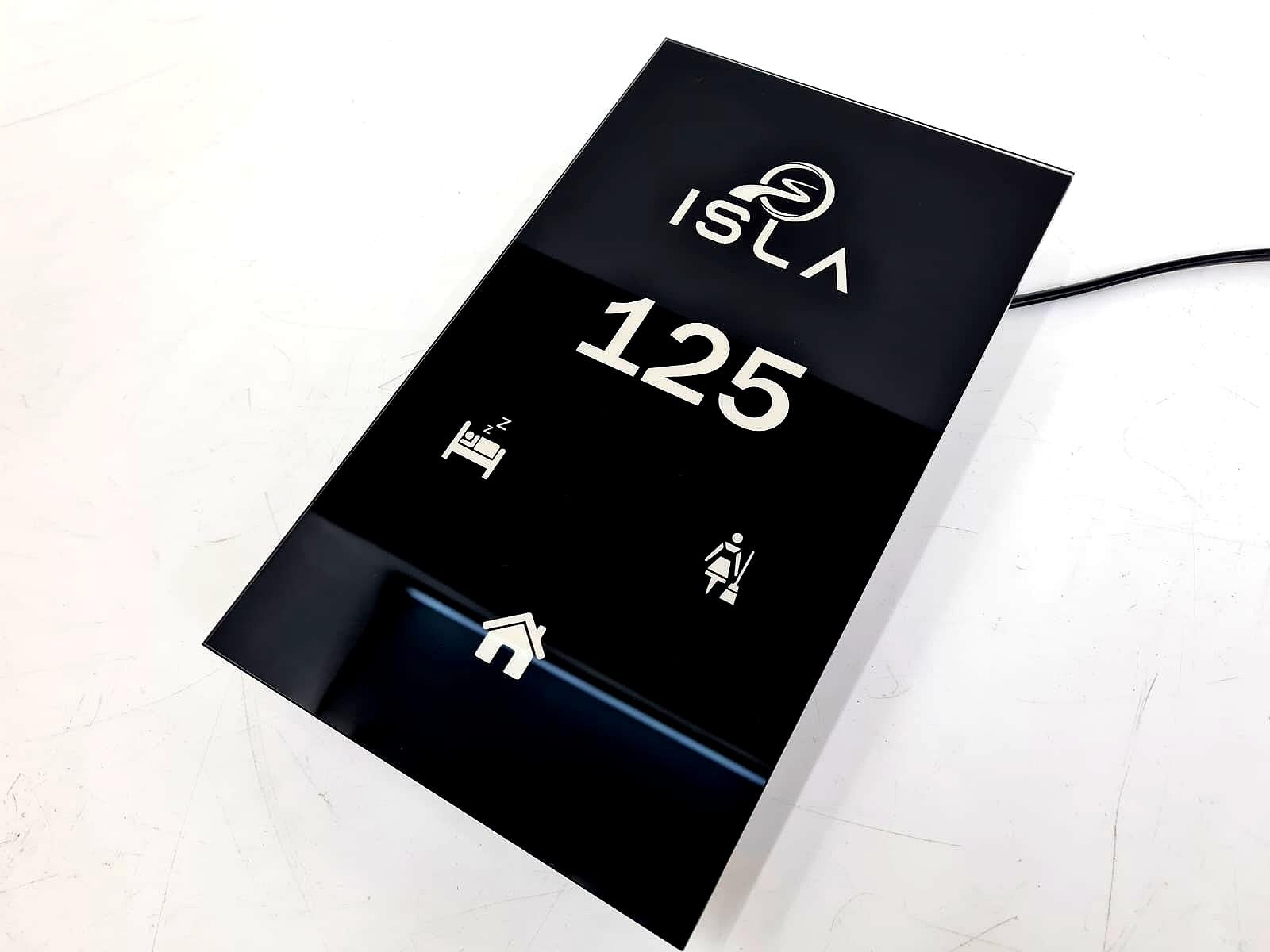

• ✅ Customizable Logo: Your business logo can be integrated into the top of the panel. It offers a professional look that reflects your corporate identity.

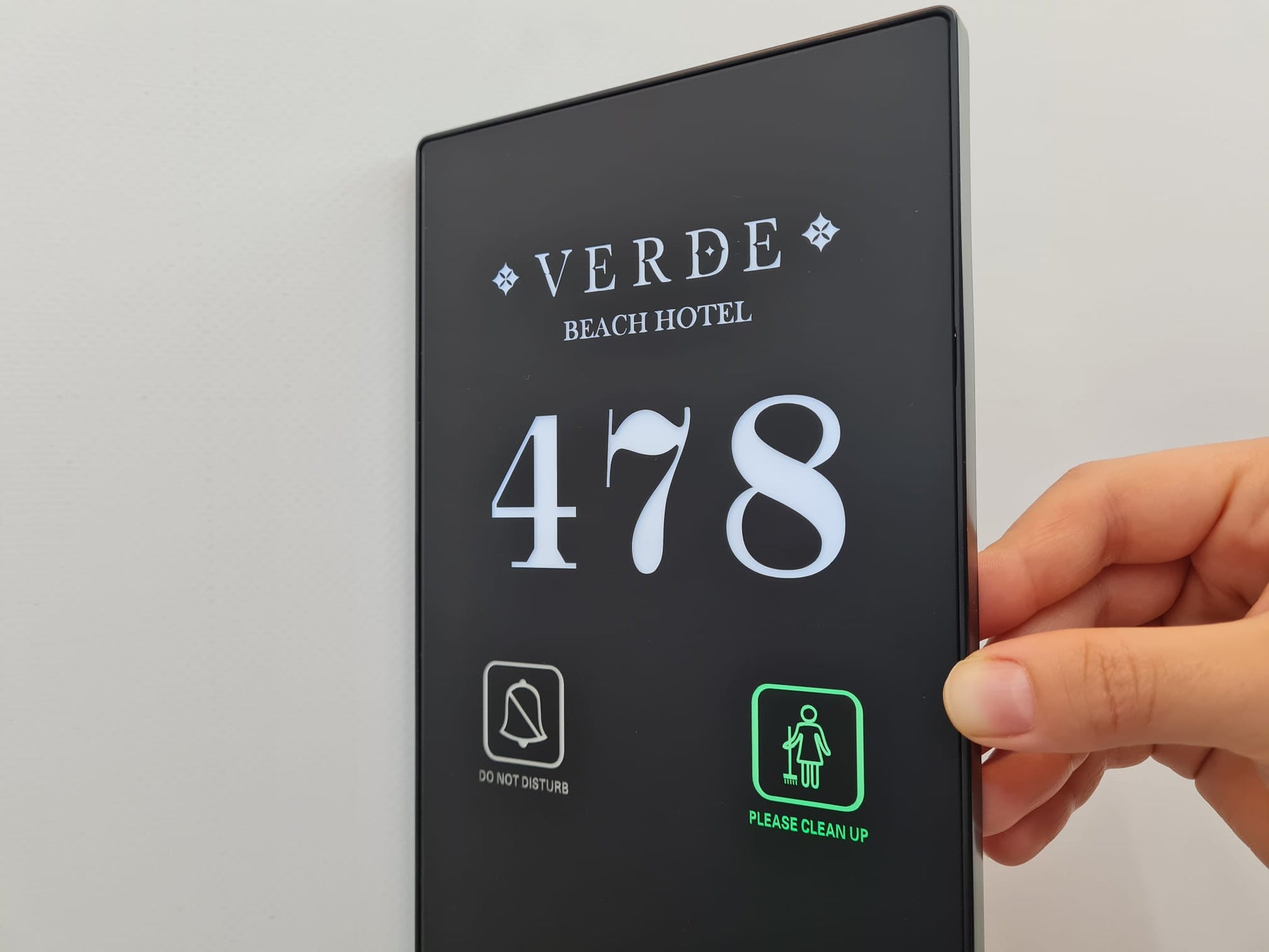

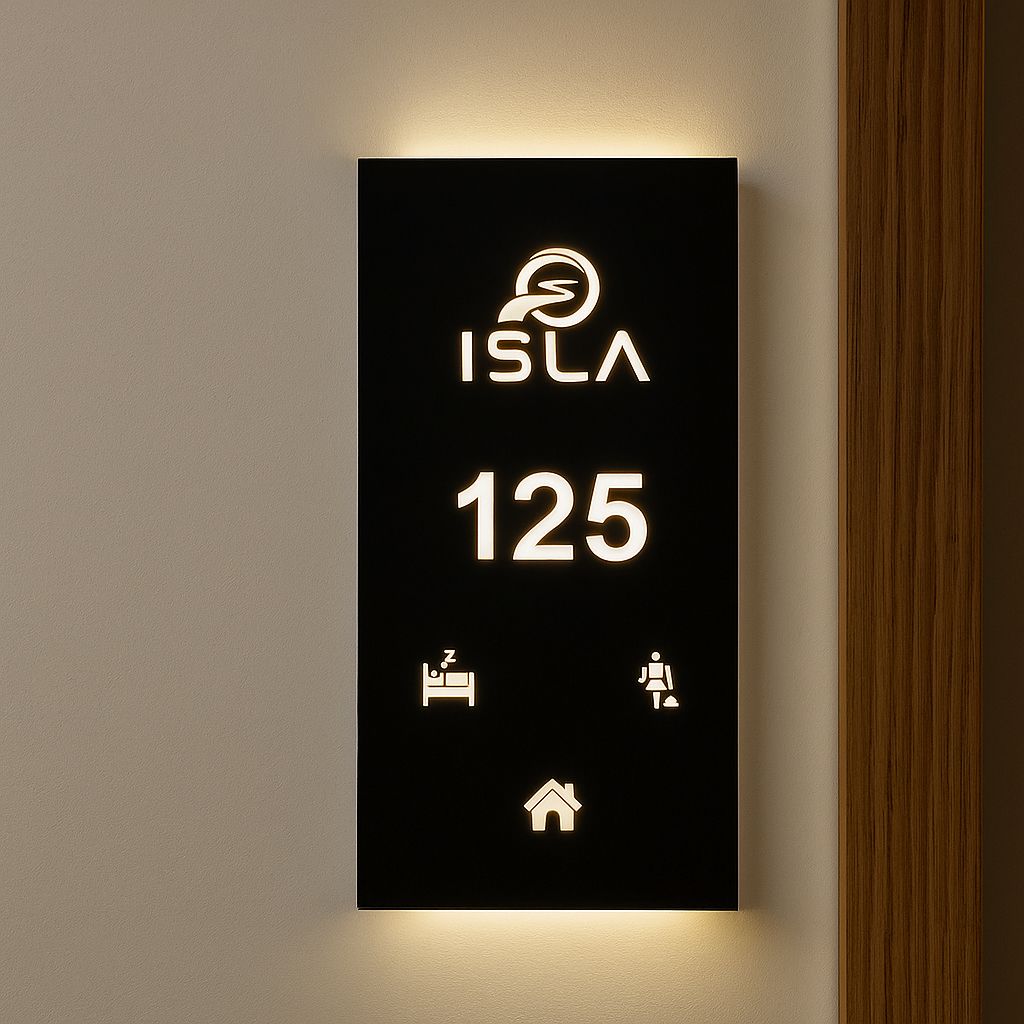

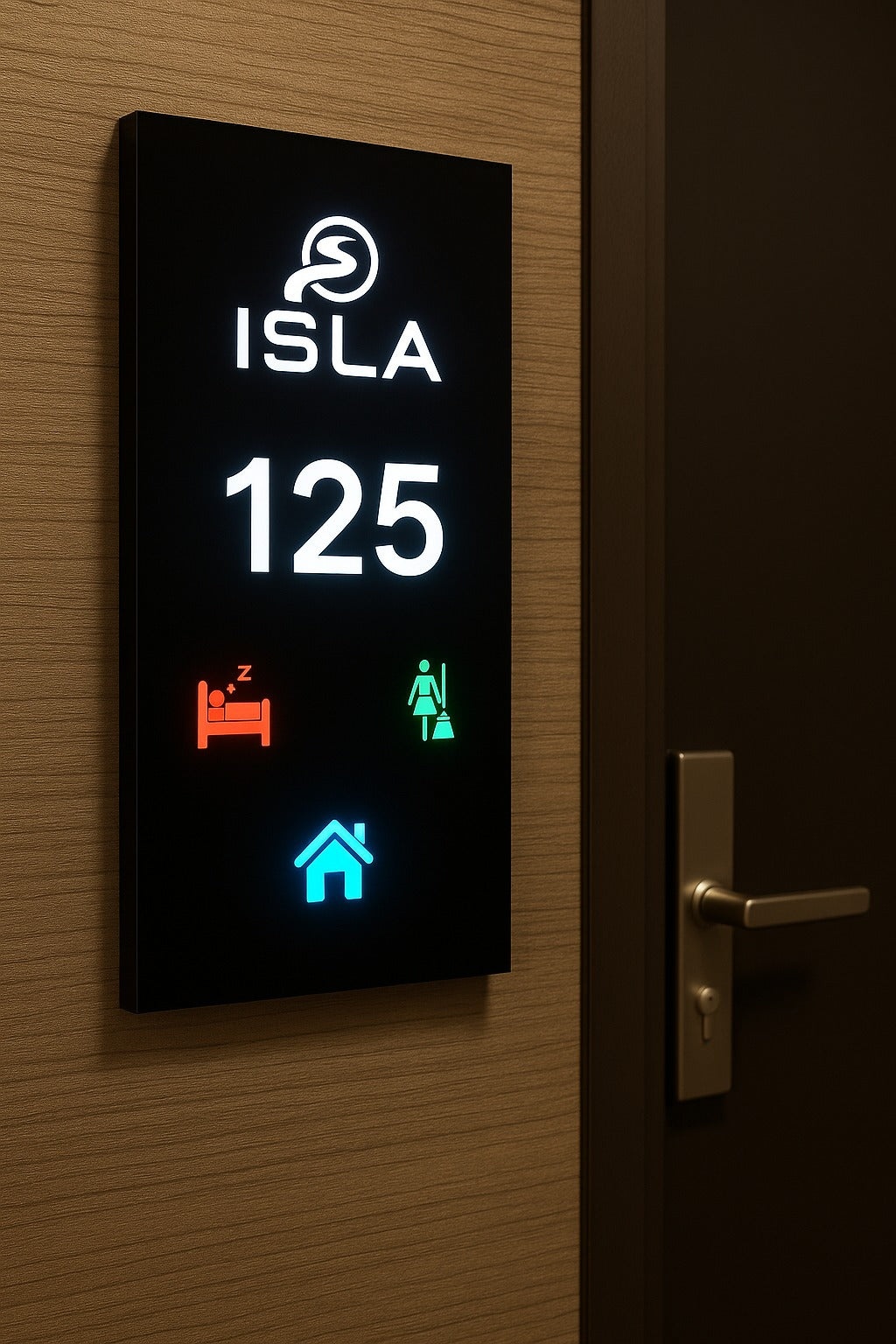

• ✅ LED Illuminated Room Number: Easy to read even at night and in low light.
• ✅ 4-Indicator Structure: A maximum of 4 button/icon indicators are supported at the bottom. The number can be reduced, but not more than 4.
• ✅ Supports Doorbell Function: A doorbell button can be added optionally. Note: The speaker system for audio output is not included with the product.
• ✅ Power Compatibility: Can operate with both 220V and 12V .
• ✅ KNX System Compatibility: Our product is not directly integrated into the KNX system. However, it can function compatibly with trigger signals (12V, dry contact, etc.) from the KNX infrastructure.
• ✅ Easy Installation: Easily mounts to the wall surface. However, please note: Electrical connections must be made exactly according to the diagram during installation. Otherwise, the product may be damaged.

  🔧 Technical Specifications

  Feature	Detail
  Product Name	Smart Room Number Panel – LED Illuminated, with DND & Cleaning Indicators
  Dimension	13 cm x 23 cm
  Body Material	Zinc Alloy
  Front Panel Material	Glass (with a glossy surface)
  Operating Voltage	12V DC and 220V AC
  Energy Consumption	Low power consumption (LED-based)
  Number of Buttons/Icons	Maximum 4 icons (DND, Clean, Bell, Availability) – can be reduced, not less than 4.
  Bell Function	Supported (speaker not included)
  Logo Personalization	Company logo can be integrated.
  KNX Compatibility Status	It is not directly integrated; it can be triggered by a 12V/dry contact signal.
  Assembly Method	Surface mount – wall type
  Assembly Warning	The electrical connection must be made exactly according to the diagram.
  Control System	Operates via external trigger – internal control buttons are not included with the product.
  Areas of Application	Hotels, apart-hotels, resorts, guesthouses
  Delivery Time	25 business days

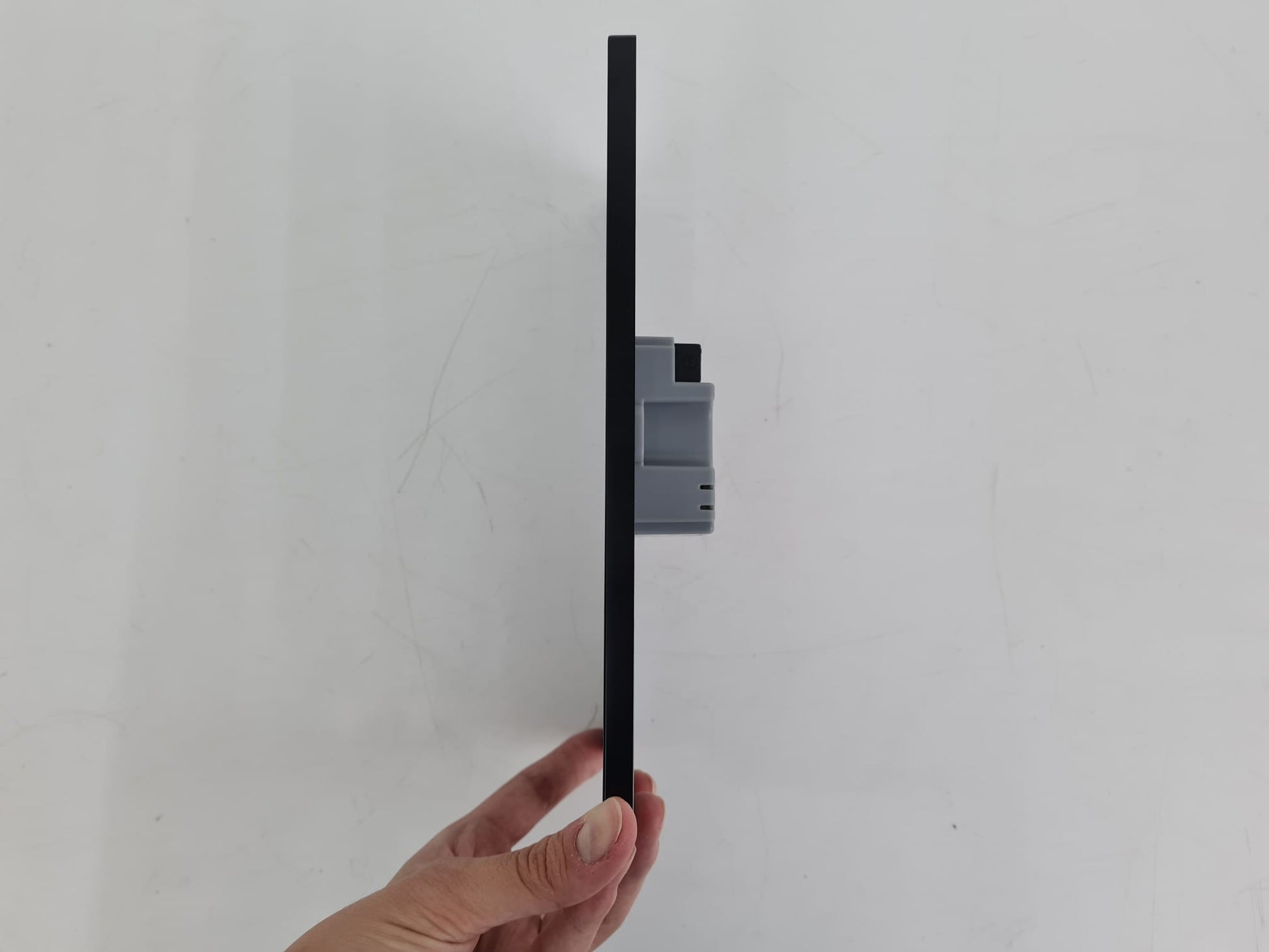

  📌 Installation Warning – Regarding the Protruding Mechanism

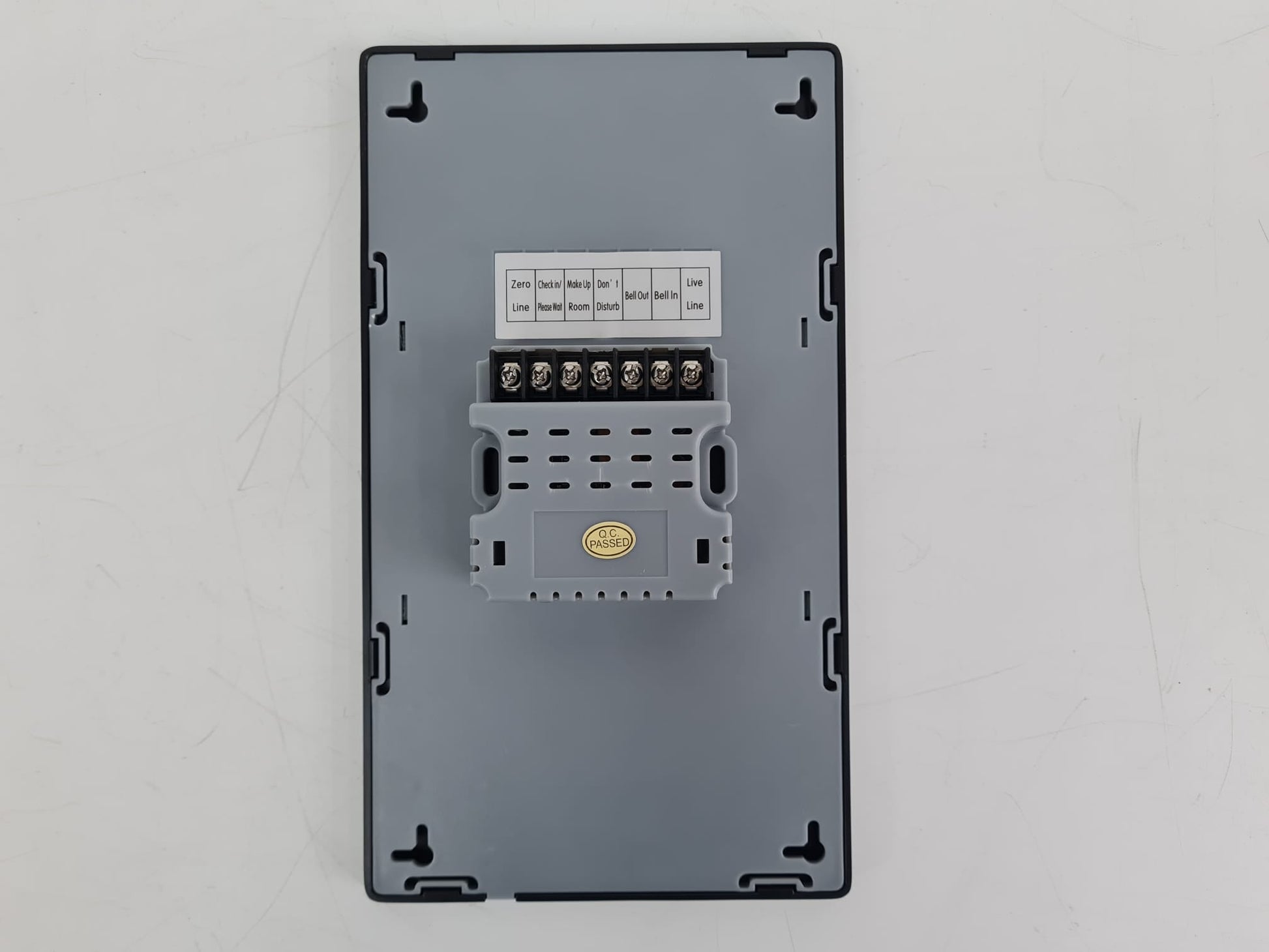

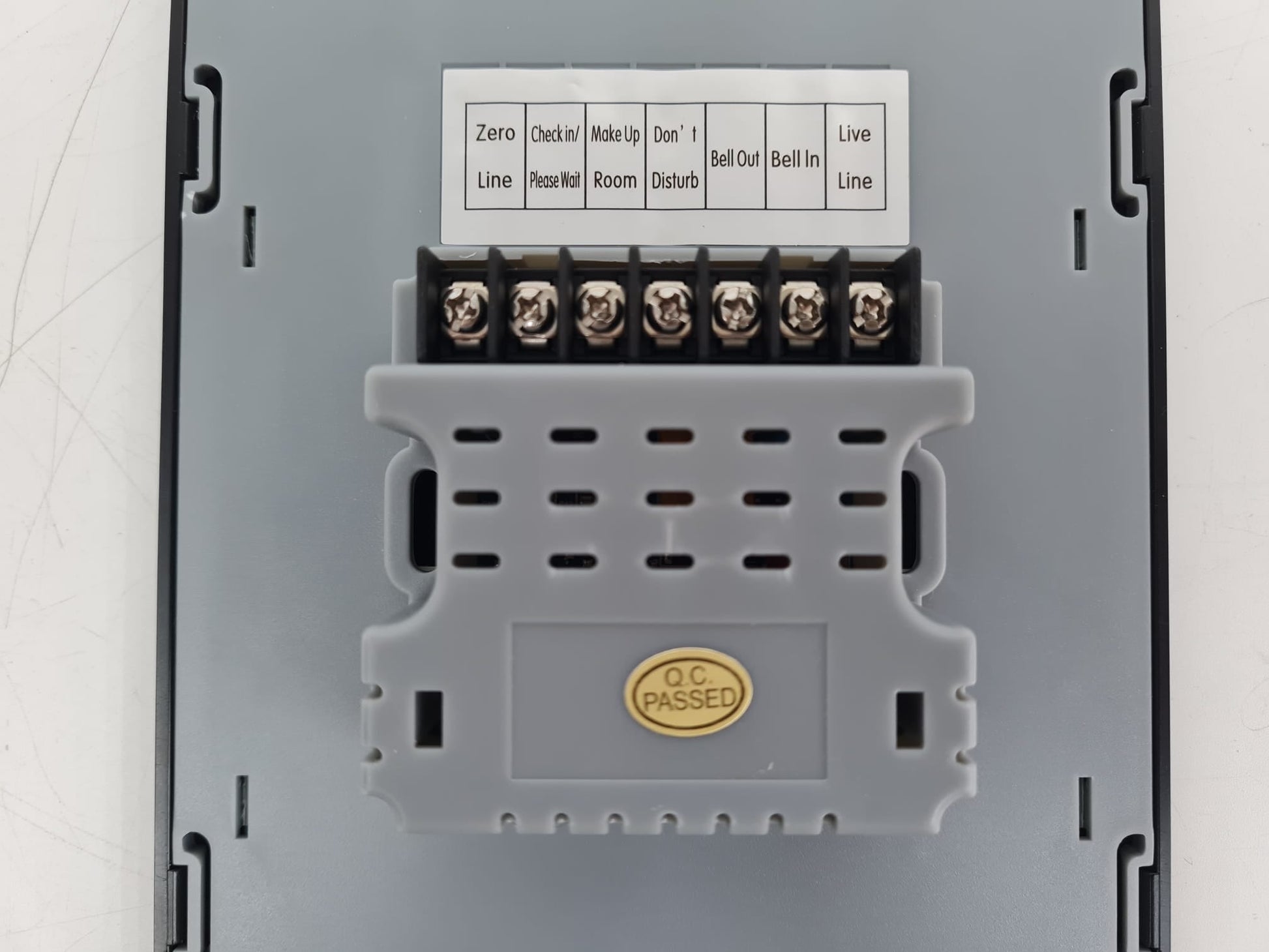

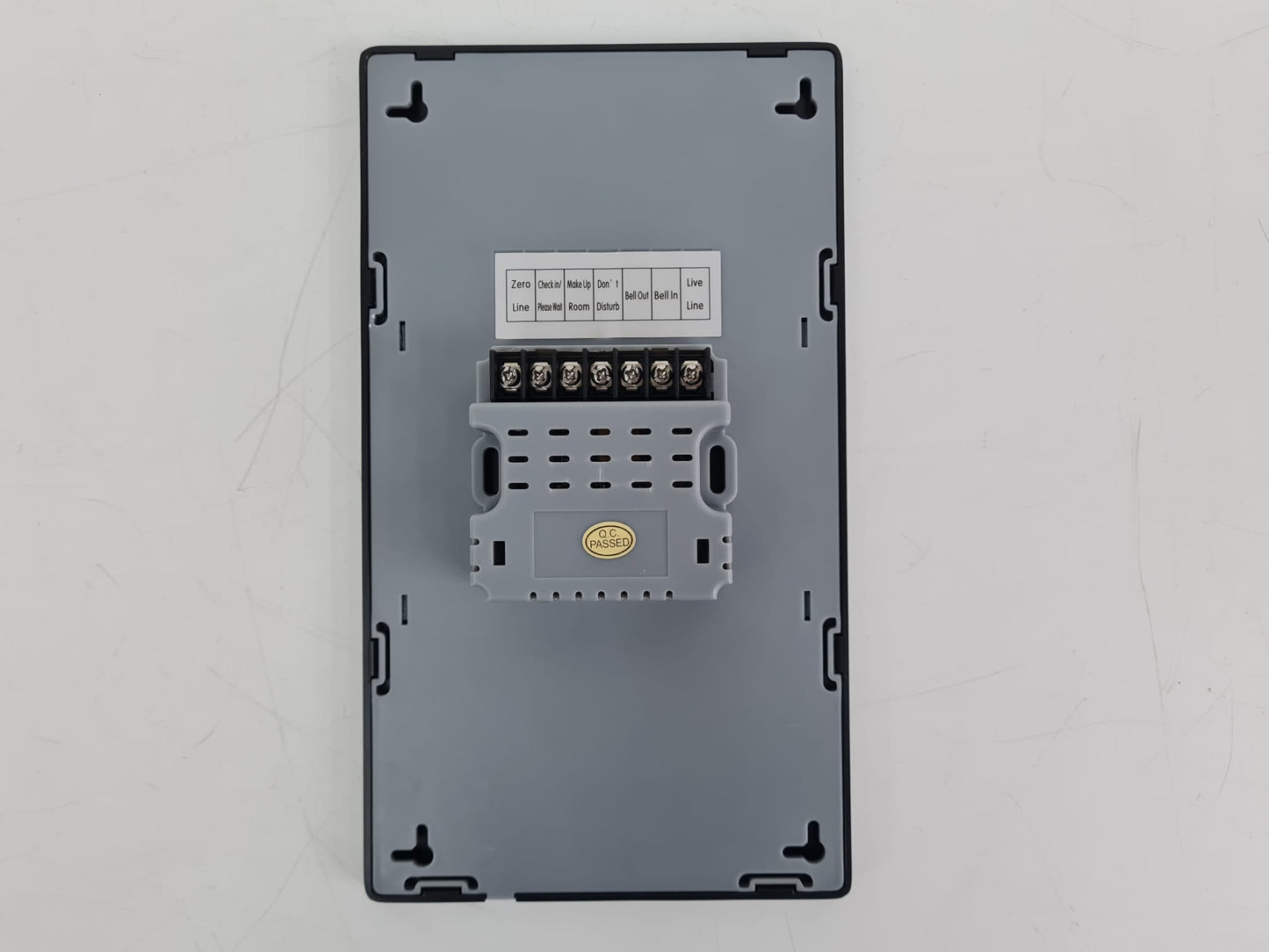

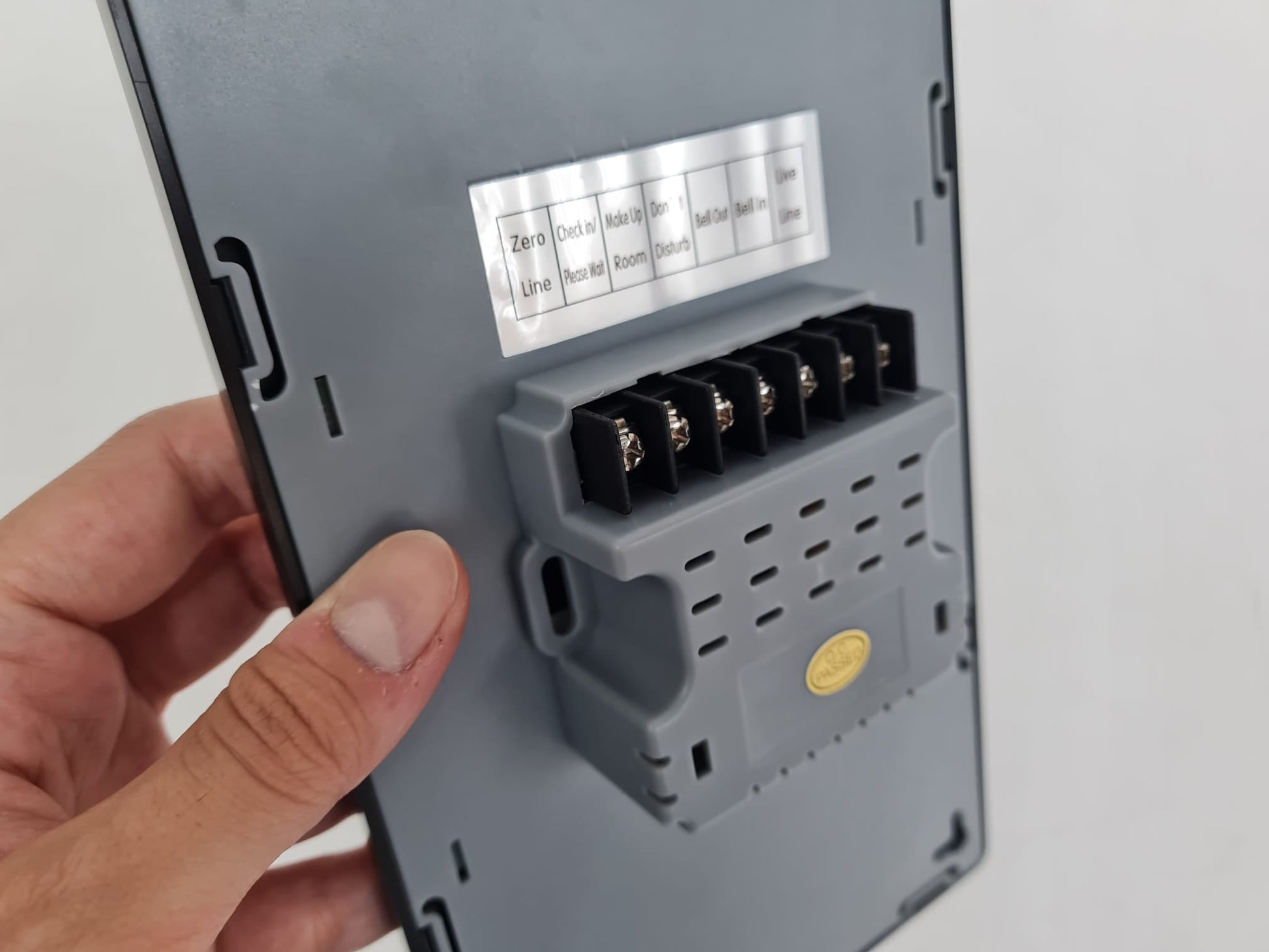

  Our product features an embedded terminal block and a protruding connection slot on the rear surface where the connection cables are placed (see attached image). This design allows for safe and organized electrical connections.


  ⚠️ However, the following points should be considered during assembly:
  • A recess or gap must be prepared in the wall or surface to accommodate the protruding mechanism on the back of the product.
  • This clearance is necessary to allow cables to be easily routed and for the product to sit perfectly on the surface.
  • If mounted directly to the surface, the product may not stand properly or the connection points may be damaged.


  🔧 Recommended installation: A recess at least 4 cm deep and at least 7 cm x 6 cm in size should be left on the mounting surface. Electrical connections must be securely made within this area.

⚙️ How does it work?

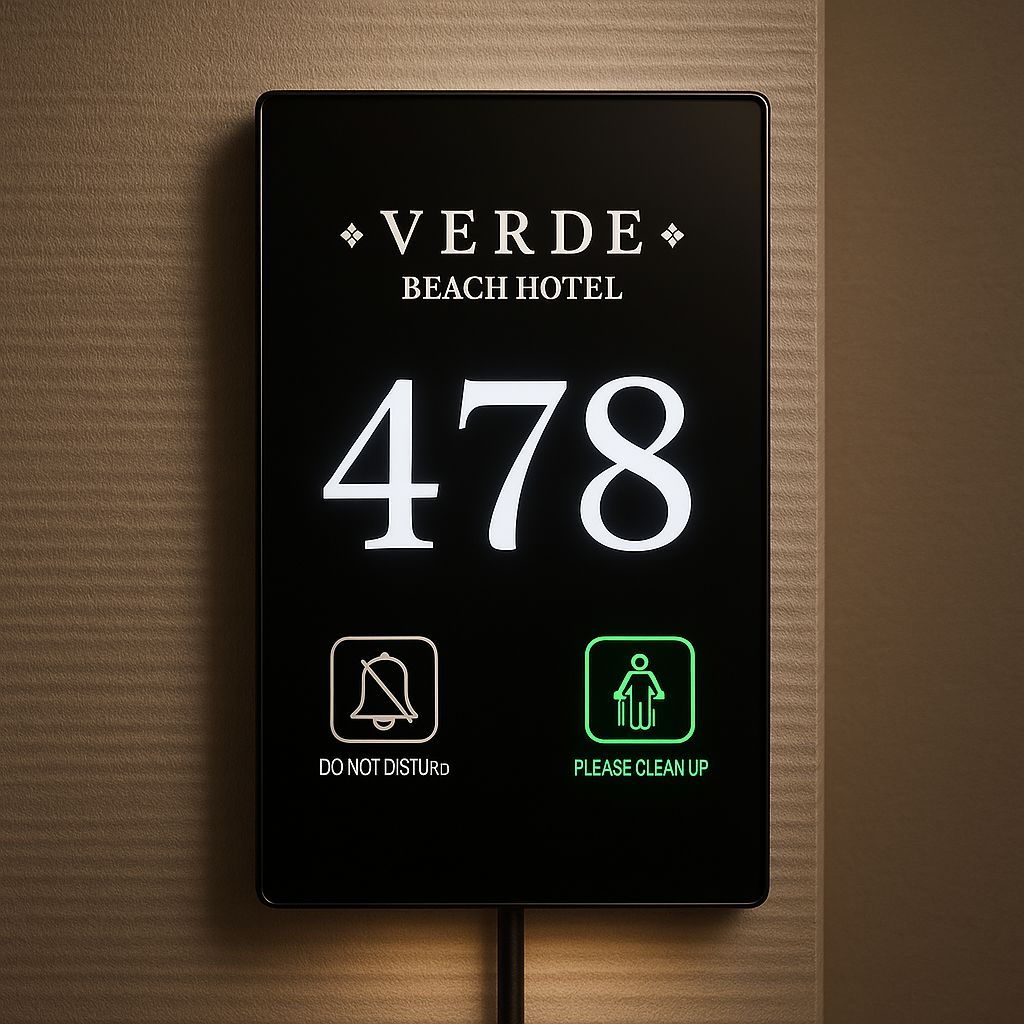

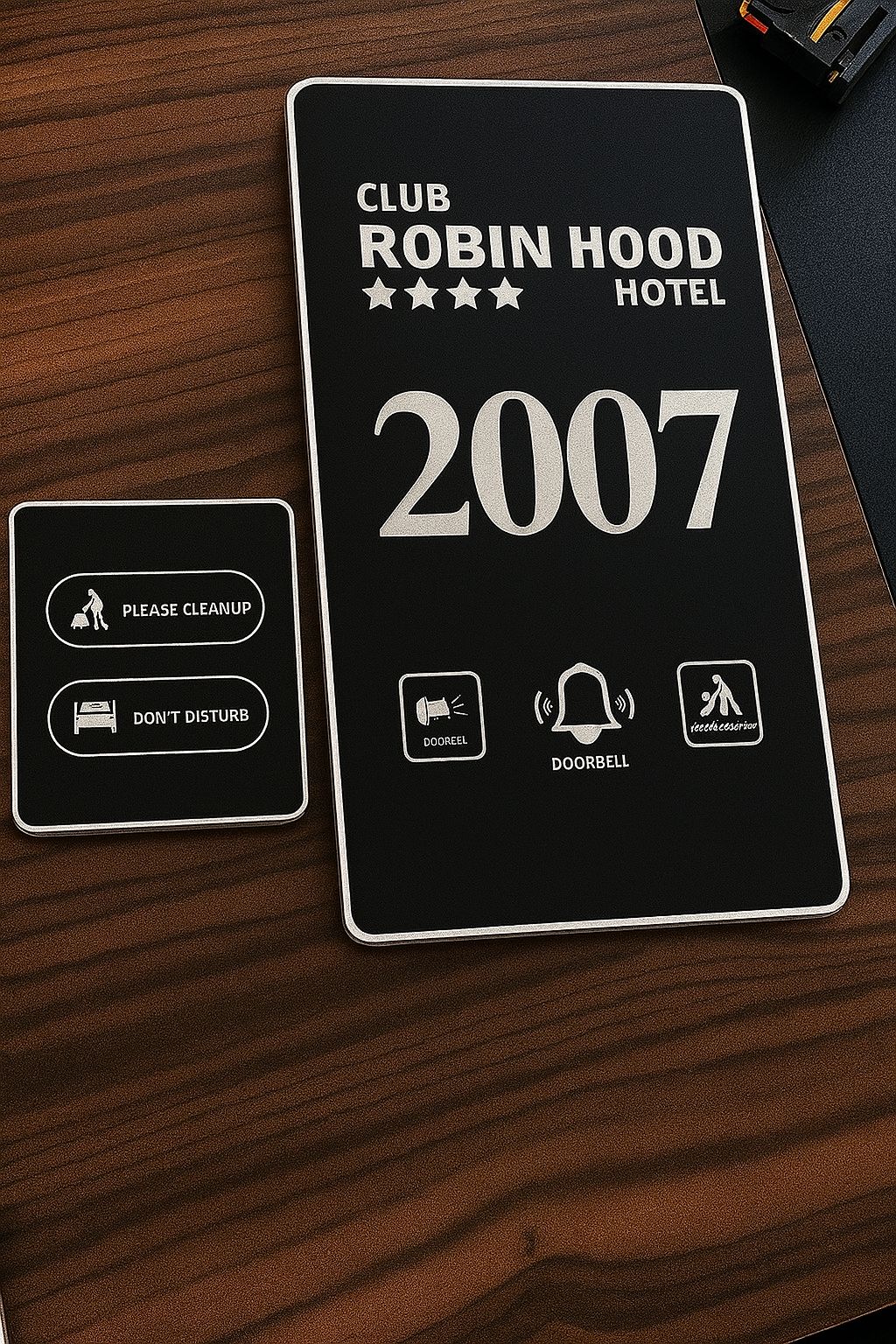

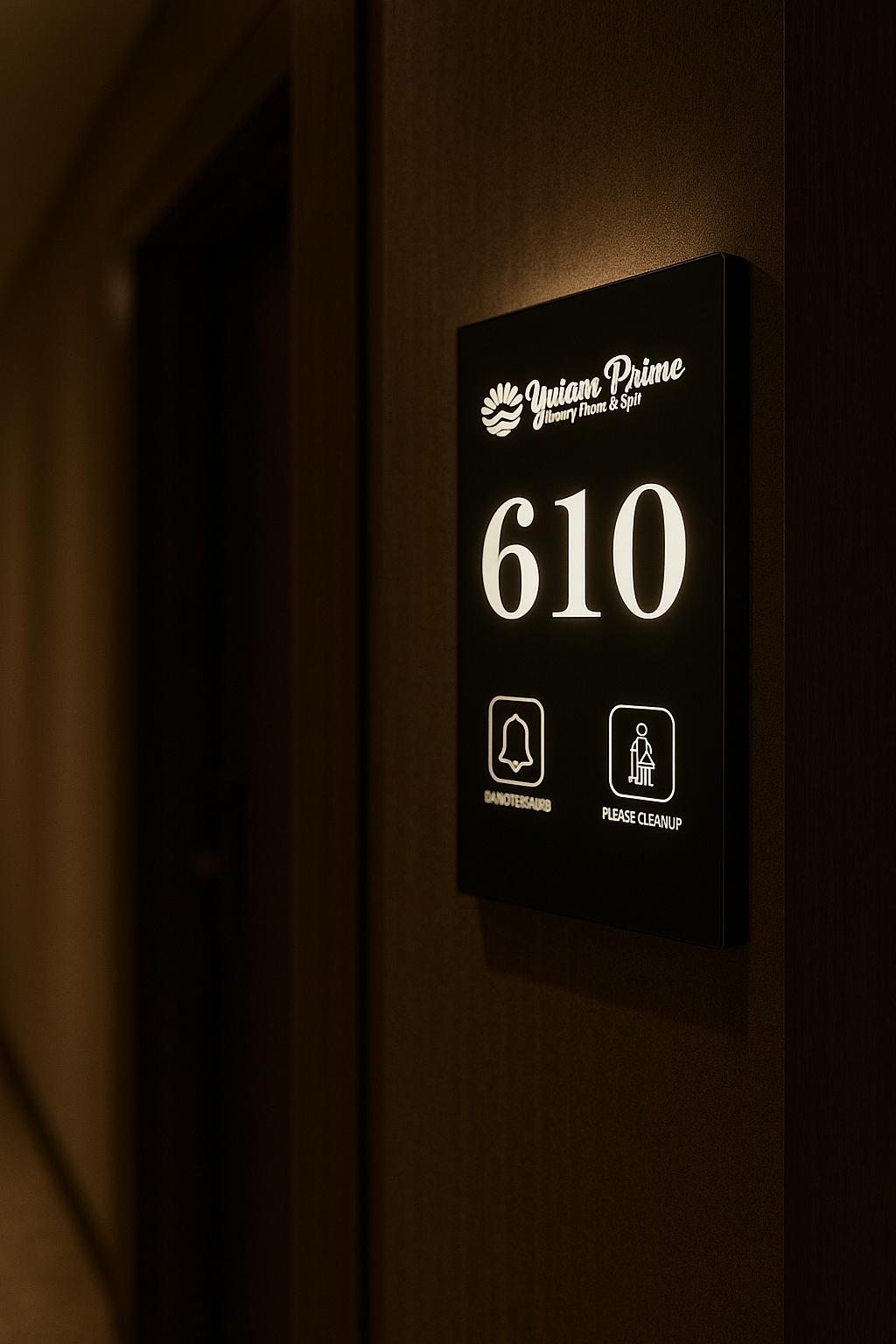

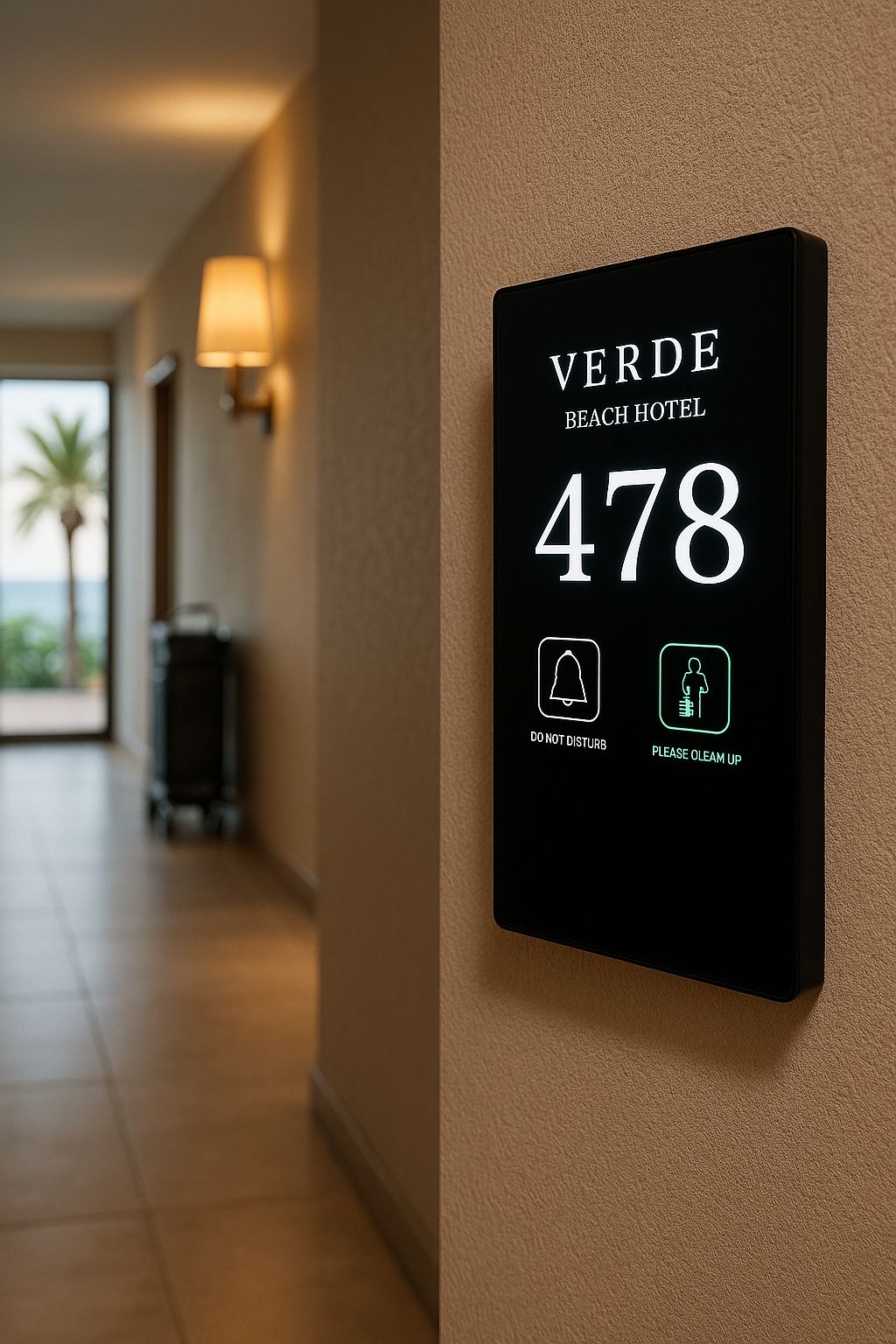

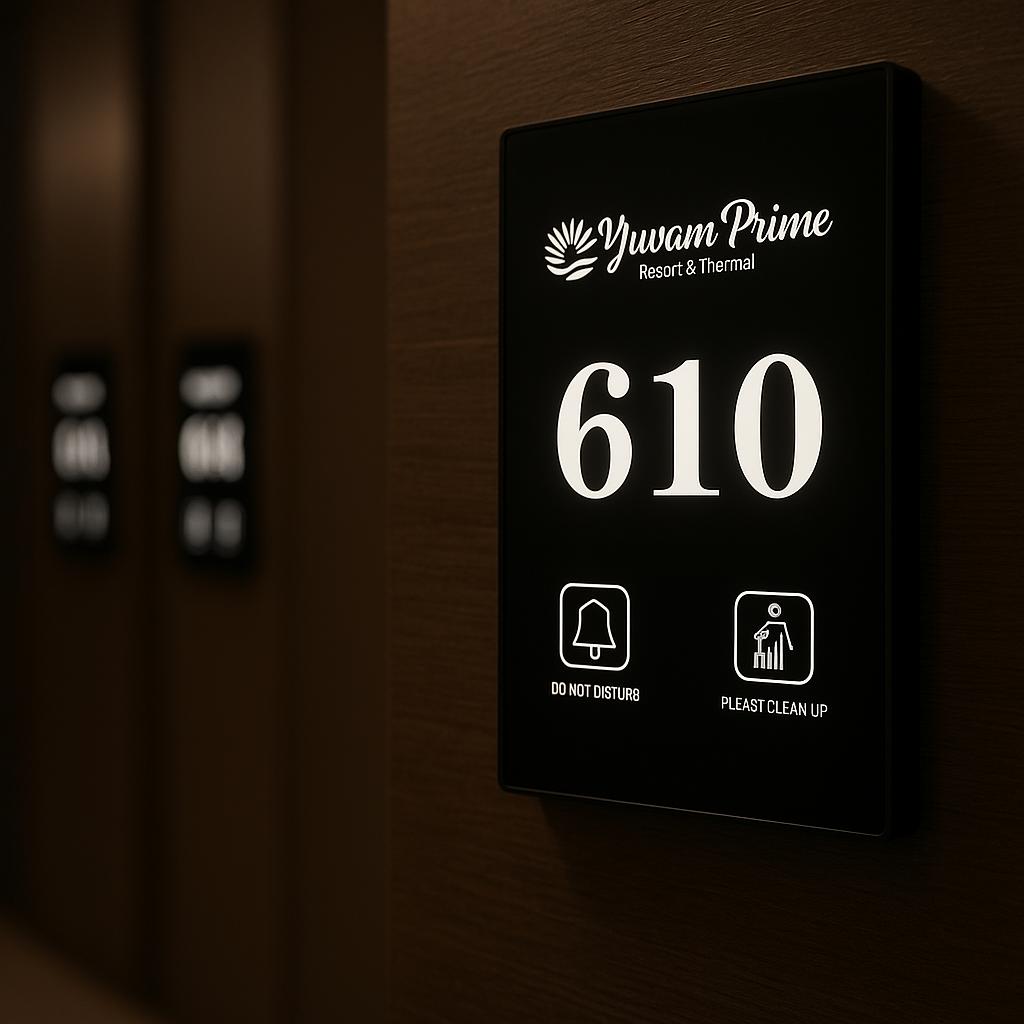

Our product is a "DND (Do Not Disturb) & Housekeeping" indicator mounted outside the room, and its LED indicators are activated by simple signal commands from inside the room.
Our product is triggered via control buttons inside the room, but this control system is not included with the product.

🔸 Indoor buttons are not included with the product.
🔸 Signal triggering is provided via 12V or dry contact.

📦 Supply and Production Process

• ⏱️ Delivery time: 25 business days.
  After the order is placed, the production and customization steps begin.

🔑 KNX System Compatibility Information (Summary)

• The product is not directly connected to the KNX system.
• However, it can operate without problems with the trigger signal received from the KNX system (12V/dry contact output).
• This allows it to be integrated with your existing automation infrastructure.

🚀 Why Should You Choose This Product?

• It enhances corporate prestige.
• Energy efficient and durable.
• User-friendly signaling system
• Each hotel has a customizable structure.
